Concrete Floor Thickness: Essential for Car Hoist Setup

Crucial Considerations for Installing a Car Hoist in Your Garage

If you are considering the installation of a car hoist in your garage, it is essential to ensure that your concrete floor meets all necessary specifications. A robust and stable foundation is not only vital for the effective functionality of the hoist but also paramount for guaranteeing the safety of your vehicles and anyone operating the equipment. Adequate preparation and strict adherence to guidelines can significantly enhance both the performance and longevity of your hoist installation.

Most car hoists necessitate a concrete slab with a minimum thickness of 100mm (4 inches). This specific measurement is crucial as it facilitates the even distribution of the weight from both the vehicle and the hoist itself, thereby minimising the risk of potential cracking or sinking over time. For heavy-duty hoists, it is advisable to consider a thicker concrete slab, potentially reaching up to 150mm (6 inches), to ensure optimal performance and safety during operation.

Comprehensive Steps to Accurately Determine Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a critical aspect in the safe installation and operation of a car hoist. Several factors must be taken into account when evaluating the appropriate depth for your slab to ensure it can adequately manage the loads it will experience during operation. A thorough understanding of these factors can help prevent costly mistakes and bolster the safety of your garage setup.

Evaluating Load Capacity for Your Car Hoist Installation

Car hoists exert significant stress on the concrete floor beneath them. Therefore, it is essential to comprehend the total weight that your concrete floor is required to support. This consideration encompasses not only the weight of the vehicle but also the weight of the hoist itself, which can contribute a considerable amount of additional load.

A standard passenger car typically weighs between 1,500 to 2,000 kg, while the hoist may add an extra 500 to 1,000 kg. Moreover, it is prudent to factor in additional weight as a safety buffer to ensure the structure can accommodate unforeseen circumstances effectively.

For the majority of home garages, a concrete thickness ranging from 100 mm to 150 mm is generally adequate. However, if you intend to lift substantially heavier vehicles, it may be necessary to contemplate a thicker slab to ensure safety and stability during operation. Collaborating with a structural engineer is a wise decision, as they possess the expertise to provide tailored advice and assist you in calculating the precise thickness required based on your specific circumstances and requirements.

Investigating Different Types of Car Hoists and Their Concrete Thickness Requirements

It is vital to acknowledge that various types of car hoists have distinct requirements concerning concrete thickness. Two-post lifts and four-post lifts are two popular options among homeowners looking to incorporate a car hoist into their garage.

Two-post lifts typically exert pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This understanding is crucial for ensuring the safety and stability of the installation.

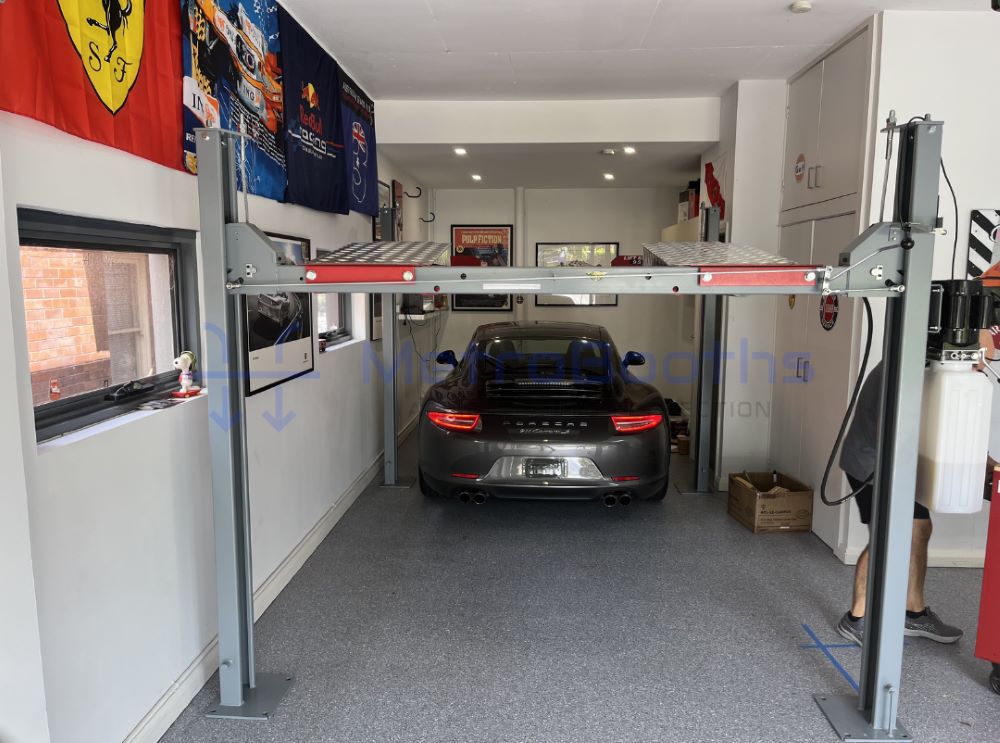

Conversely, four-post lifts distribute weight more evenly over a larger area, allowing them to operate effectively with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This knowledge plays a significant role in your planning and installation process.

Always consult the manufacturer's specifications for the hoist you are considering, as they will typically outline the minimum concrete thickness required for safe operation. Adhering to these guidelines is essential for achieving optimal performance and longevity. Keep in mind that these recommendations serve as general guidelines; your specific needs may vary depending on the configuration of your garage and the types of vehicles you plan to lift.

Recognising the Importance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is just as critical as its thickness. Stronger concrete can often be effectively utilised at a thinner depth while still providing adequate support for heavy loads. This is particularly relevant in the context of a car hoist installation.

It is advisable to utilise concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts recommend opting for concrete with a strength of up to 32 MPa for applications that involve heavy-duty use and frequent vehicle lifting. This ensures a reliable foundation.

Incorporating reinforcement techniques is essential for significantly enhancing the durability of your concrete. The addition of steel mesh or rebar can greatly improve the overall strength of your concrete floor. Consequently, this could allow you to utilise a thinner slab while still ensuring it can effectively support heavy loads during operation.

For most home garages, SL82 mesh presents a reliable option. It provides sufficient strength for the majority of car hoists without incurring excessive costs. This consideration is vital for budget-conscious homeowners who wish to maintain a balance between quality and affordability.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This inclusion can assist in mitigating the formation and propagation of small cracks over time, thereby enhancing the longevity of your installation.

Essential Installation Factors for Achieving Successful Car Hoist Operation

When installing a car hoist, meticulous site preparation and consistent floor maintenance are of utmost importance. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your investment from potential damage.

Vital Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before installing your car hoist, it is imperative to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free from any cracks to guarantee optimal performance and safety during use.

For new concrete pours, it is essential to utilise steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability, which is fundamental in preventing future issues.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately assess its condition and provide guidance.

Crucial Ongoing Maintenance After Your Car Hoist Installation

Once your car hoist is installed, it is critical to regularly monitor the condition of the concrete surrounding it. Keep an eye out for any cracks, chips, or signs of stress, and address any issues swiftly to prevent larger complications that could affect the functionality of your hoist and the safety of your garage environment.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues that may jeopardise the stability of your hoist. Additionally, consider using protective mats under the lift arms to minimise wear and tear on the floor, ultimately extending its lifespan.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs and ensure safe usage for all vehicles lifted by the hoist.

Think about applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for any garage owner.

Frequently Asked Questions Regarding Car Hoist Installation and Concrete Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some common questions related to the concrete requirements for various types of lifts.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may require thicker slabs for safe operation, which is vital to consider.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, ensuring peace of mind and safety.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards for anyone using the hoist. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, which is crucial for high-frequency operations.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring safety and compliance.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency, ultimately safeguarding your investment.
