Flat Metal Roof Leaking Issues Explained

Recognising and Addressing Common Issues with Flat Roofs for Homes on the Central Coast

Although flat roofs may not be the predominant choice in roofing across Australia, their acceptance is growing among both residential and commercial buildings. These roofs are frequently utilised on patios, carports, walkways, and other areas that necessitate low-pitch roofing solutions. When the angle is minimal, flat roofs may also be referred to as “skillion roofs.”

While flat roofs offer numerous advantages, they also present specific challenges that homeowners need to be aware of. Recognising the common issues associated with flat roofing systems and deploying effective strategies to mitigate them is essential, particularly on the Central Coast, where the coastal climate, heavy rainfall, and salt-laden air can exacerbate roofing challenges.

What Factors Are Driving the Growing Popularity of Flat Roofs Among Homeowners?

Flat roofs are gaining traction in both residential and commercial constructions for various compelling reasons:

• They are quicker and simpler to install, facilitating faster project completion
• They provide easier maintenance access, which simplifies routine inspections and repairs
• They serve as excellent platforms for solar panel installations, fostering energy efficiency

The most pressing concern associated with flat roofs is managing water drainage. Water poses a significant threat to your roof's integrity. When contemplating a new roof installation or updating an existing one, it is vital to factor in various elements, particularly rainfall, which can vary greatly across Australia’s diverse regions.

What Are the Major Drainage Challenges Associated with Flat Roofs?

Unlike pitched roofs that facilitate quick rainwater runoff into gutters, flat roofs have a limited incline. This design can lead to water accumulation that remains for extended periods. If water is not efficiently channelled off the roof, it may result in:

• Surface staining and degradation of roofing materials
• Structural weakening of roofing elements over time
• Build-up of mould and mildew, which poses health risks
• Leaks that could penetrate the building’s interior

The resolution to these issues hinges on effective roof plumbing and thoughtful design that addresses the unique challenges posed by flat roofs.

How to Enhance Flat Roof Designs for Optimal Drainage Efficiency

Before installation, a qualified roofing contractor will evaluate several critical factors that influence drainage efficiency:

• Local rainfall intensity and prevailing weather patterns
• Overall roof area and precise measurements
• Gutter configurations and effective drainage outlets
• Downpipe dimensions and specifications
• Options for overflow prevention to manage excess water
• Considerations regarding roof pitch to improve drainage

Most roofing manufacturers advocate for a minimum slope of 5° for low-pitch roofs. Roofs with less than this incline can jeopardise waterproofing effectiveness and may even void product warranties, leading to potentially costly repairs.

Standard corrugated roofing sheets, while ideal for pitched roofs, are unsuitable for very low-pitch applications. For flat roofs, specific roofing profiles designed for efficient water shedding are highly recommended to ensure long-lasting performance.

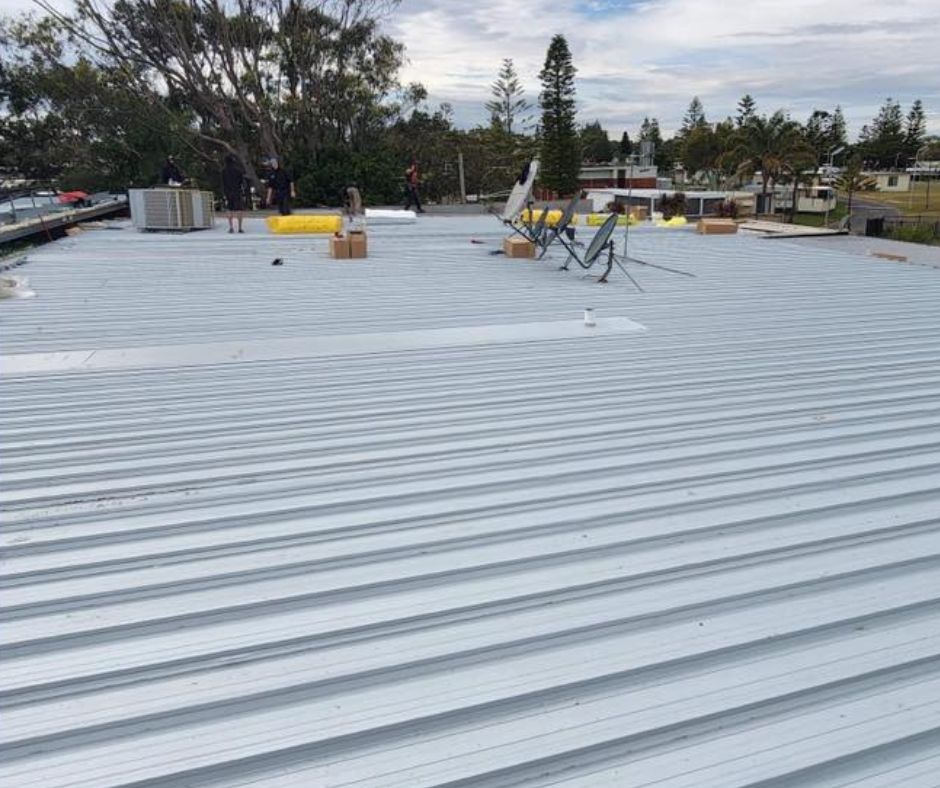

Investigating the Best Metal Roofing Profiles for Low-Pitch and Flat Roof Applications

Two of the most highly recommended roofing profiles for low-pitch and flat roofs include:

Trimdek: This versatile profile is appropriate for both roofing and wall applications. Its 28mm rib height and specially designed capillary groove enhance watertightness, even at a minimal pitch of 2°.

Kliplok: This innovative clipped roofing profile employs hidden clips instead of screws to secure sheets. This design effectively prevents water ingress through screw penetrations, making it an excellent option for low-pitch installations.

Choosing the right roofing profile based on your roof pitch and local rainfall conditions is crucial for ensuring the long-lasting performance and reliability of your roofing system.

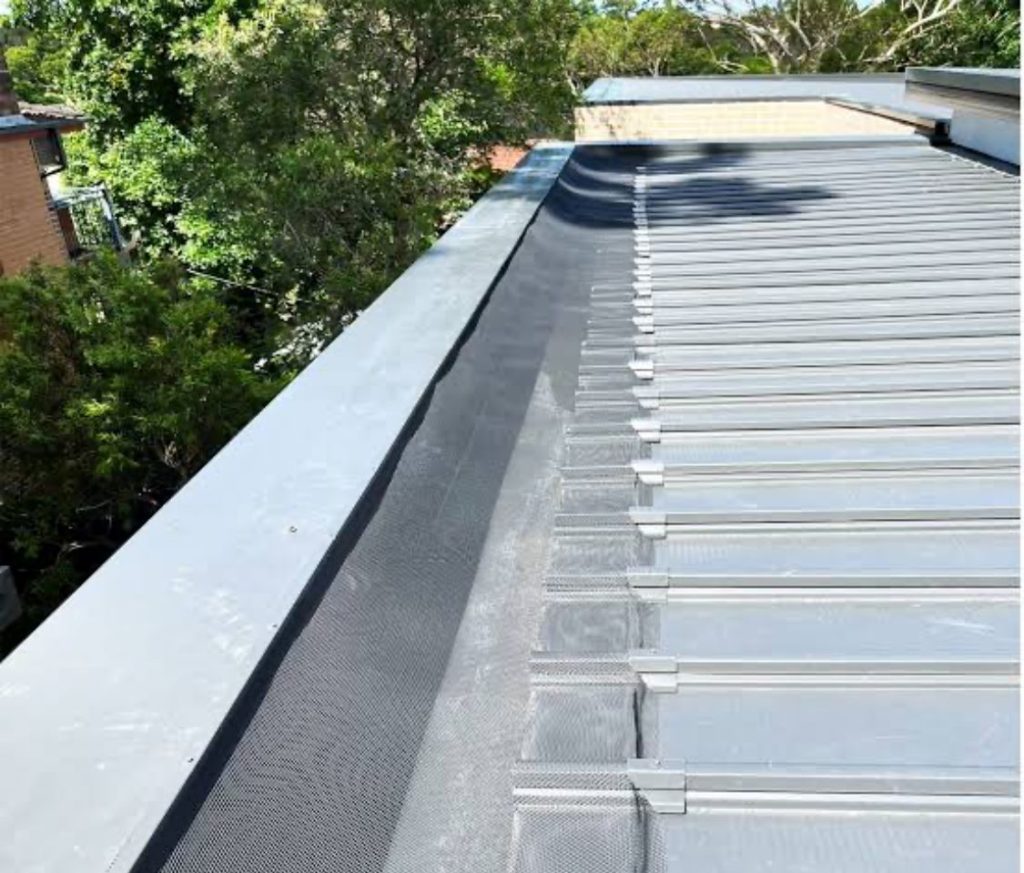

How to Effectively Handle Box Gutters and Flat Roof Drainage

On flat roofs, box gutters are frequently used to connect roof panels to drainage outlets. Since box gutters are positioned below the roof plane, they necessitate meticulous detailing and installation to avoid blockages and water backup issues.

Common challenges linked to box gutters include:

• Debris accumulation from nearby trees and foliage
• Improper fall or slope that obstructs water flow
• Overflowing back into the roof structure, which can lead to leaks
• Blocked downpipes that hinder effective drainage

Addressing these challenges begins with proper gutter design and a commitment to regular maintenance to ensure optimal functionality.

What Factors Should You Consider When Choosing Guttering for Your Flat Roof?

Standard gutters may not adequately accommodate the water flow needs of flat roofs. It is often essential to install guttering designed to manage larger water capacities. Next, we will examine various drainage and overflow options that can be integrated into your flat metal roof design.

• Facilitate quicker water removal during heavy rainfall
• Effectively sweep debris away with high flow capabilities
• Provide easier cleaning and maintenance options for homeowners

Our top recommendation for gutters is self-cleaning designs, which are perfect for flat metal roofs while also offering an aesthetically pleasing appearance!

We strongly support the use of a half-round gutter due to its superior water-carrying capacity, which enables faster drainage. This design effectively sweeps away silt and sludge build-ups with each rainfall, ensuring a cleaner system over time.

For optimal performance on flat roofs, gutters should be adequately sized based on local rainfall patterns and connected to appropriately sized downpipes (for example, 100mm × 75mm) that can handle substantial water volumes. In areas abundant with trees, installing leaf diverters or guards can significantly reduce blockage issues.

How Do Flashings Prevent Water Entry at Roof Joints?

Flashings are essential components installed at joints where roof sheets intersect with walls or other surfaces, including around skylights, chimneys, and at internal corners. On flat roofs, proper flashing installation is vital, as water can pool around these joints if they are not adequately sealed.

To effectively prevent water ingress:

• Flashings must be precisely shaped to conform to the roof profiles
• Waterproof sealants should be applied at all joints to guarantee tight seals
• Extra care is required at corners and seams where water may collect

By ensuring that flashings and sealants are installed correctly, you can create a watertight roof, even during heavy rainfall. Our team takes additional precautions during installation and utilises high-quality waterproof sealant to prevent water from pooling in these vulnerable areas.

Why Is Regular Maintenance Essential for the Longevity of Flat Roofs?

Flat roof systems, particularly those connected to box gutters, require routine inspections and maintenance to ensure their effectiveness. This includes:

• Removing debris from gutters and box gutters to ensure clear drainage
• Checking downpipes for any signs of potential blockages
• Inspecting roof surfaces for small cracks or areas where water may accumulate
• Re-sealing flashings as necessary to maintain waterproof integrity

Conducting regular maintenance checks can prevent the need for more extensive repair work in the future, thereby extending the life of your roofing system.

Uncover the Advantages of Well-Installed Flat Roofs

When designed and installed by skilled metal roofing professionals, flat roofs bring numerous benefits:

• A contemporary, sleek architectural aesthetic that enhances property value
• Optimised space for patios, decks, or utility services, maximising utility
• Convenient access for maintenance or solar panel installation, simplifying upkeep

Moreover, flat roofs can seamlessly integrate with existing pitched roof structures when drainage and detailing are effectively managed, enhancing the overall functionality and visual appeal of the building.

How to Ensure Proper Flat Roof Installation on the Central Coast

A well-designed and expertly installed flat metal roof can deliver both functionality and long-lasting durability within the coastal environment. Whether you are embarking on a new construction project, extending a patio, or adding a carport, selecting the appropriate roofing system and drainage design is vital for optimal performance and longevity.

Contact AWS Roofing today to request a quote and secure your installation date. With another wet summer approaching, now is the ideal time to address any roofing issues and prevent more significant problems in the future.

Flat Roof Frequently Asked Questions: Do Flat Roofs Experience More Problems Compared to Pitched Roofs?

Flat roofs can indeed face more drainage challenges if they are not designed properly. Without an adequate slope, water may pond or leak into the building structure. However, when constructed with the correct pitch, roofing profile, box gutter design, and flashing techniques, flat roofs can be just as resilient as pitched roofs.

What is the Optimal Roof Pitch for a Flat or Low-Slope Roof?

Most roofing manufacturers advise a minimum pitch of 5 degrees for metal flat roofs. Profiles such as Trimdek and Kliplok can function effectively at pitches as low as 2 degrees when installed correctly and properly sealed against water. Anything below 5 degrees necessitates careful selection of materials and detailed guttering strategies to ensure proper drainage.

Is it Possible to Install Solar Panels on a Flat Metal Roof?

Absolutely, flat metal roofs are ideal for solar panel installations. The accessible surface simplifies the installation process and enhances safety. Typically, panels are tilted on angled mounts to optimise sun exposure and prevent water from pooling underneath, ensuring efficiency in energy production.

What Exactly Are Box Gutters and Why Are They Utilised on Flat Roofs?

Box gutters are internal roof gutters positioned below the roof line, often located between roof sections or along parapet walls. They are commonly used on flat roofs to effectively manage runoff, but they must be carefully sized and sloped to avoid blockages and overflow issues that could compromise the roof's integrity.

Do Flat Roofs Need Special Gutters or Downpipes?

Yes, flat roofs generally require higher-capacity gutters and larger downpipes to manage effective water drainage. Half-round gutters and 100x75mm downpipes are frequently employed to enhance flow and prevent water accumulation. Additionally, overflow devices and leaf diverters may be beneficial in minimising maintenance needs.

What is the Lifespan of a Flat Metal Roof?

When installed correctly, equipped with proper drainage, and maintained regularly, a flat Colorbond or Zincalume metal roof can last anywhere from 20 to 30 years or even longer. Keeping box gutters clear and resealing flashings as required will significantly extend the roof's lifespan and performance.
