Clay Soil’s Effect on Pipes in Caboolture

If you live in Caboolture, Morayfield, Upper Caboolture, or the Moreton Bay region and have observed wet patches, sinking ground, continual blockages, or cracks in your foundation, you may be concerned that reactive clay soil is harming your underground pipes.

The foundation in Caboolture is primarily composed of reactive clay, which expands when wet and contracts as it dries, often fluctuating in volume by 20% or more. This cyclical behaviour exerts significant pressure on underground pipes during periods of rainfall, leaving them susceptible to damage as the soil dries out. Older clay sewer and galvanised water pipes are particularly at risk. Conducting a camera inspection can help detect any damage early, while pipe relining provides an effective solution without the need for extensive excavation of your garden.

In Caboolture, your underground pipes continually contend with the shifting soil.

This ongoing struggle can result in serious damage to the pipes over time. By the time visible indicators appear, the underlying issues may have been developing for quite some time.

How Do Cycles of Clay Soil Contribute to Pipe Damage?

Four critical phases play a role: wet swelling (compression), dry shrinking (loss of support), the repeated stress of these cycles, and the typical drought-to-flood transitions experienced in Southeast Queensland. Each cycle intensifies existing cracks and misaligns pipe joints.

• The wet phase: Intense rainfall in Caboolture causes the clay to absorb water and expand. This expansion creates crushing pressure on pipes from every angle, which can either force joints together or pull them apart. Rigid pipe materials are especially prone to cracking under such immense pressure.
• The dry phase: After the rain stops and the clay dries out, it contracts and pulls away from the pipes. This creates voids and gaps, leading to sagging, bending at joints, and the development of bellies where water and sediment can collect.
• The repeat cycle: This process of expansion and contraction occurs repeatedly with changing weather—potentially dozens of times a year in Caboolture’s climate. Each cycle increases the stress on the pipes and gradually enlarges existing cracks.
• The drought-flood pattern: Southeast Queensland experiences alternating dry periods followed by heavy wet seasons. After a prolonged dry spell, the clay shrinks significantly. When substantial rain falls, the soil expands rapidly, placing pipes—possibly resting in loose, cracked ground—under sudden and extreme pressure.

Which Pipe Types Are Most Vulnerable to Damage?

Older clay sewer pipes (from properties built before the 1970s), galvanised steel water mains (from homes constructed before 1985), and concrete stormwater pipes face the highest risk of damage. Modern PVC pipes generally perform better, but inadequate backfill can still result in joint separation. Copper pipes, while more flexible, can develop pinhole leaks at connection points due to repeated stress.

• Clay pipes: Clay sewer pipes, especially those from homes built before the 1970s in Caboolture, are among the first to fail. Their brittle nature and heavy construction, along with mortar joints, make them susceptible to cracking.
• Galvanised steel pipes: Used for water supply in homes built before 1985, these pipes are already compromised by internal corrosion and can crack as the clay soil shifts around them.
• Concrete stormwater pipes: While older stormwater systems can manage compression fairly well, they often crack at joints during ground movement, allowing roots to intrude through these openings.
• PVC pipes: Modern PVC pipes are more resilient to ground movement due to their flexibility. significant ground movement can still lead to joint separation. Poor backfill during installation can increase the vulnerability of PVC pipes.
• Copper pipes: Commonly used in newer homes for water supply, copper pipes are more flexible than galvanised steel but can still develop leaks at connection points due to repeated bending stress.

What Are the Warning Signs of Underground Pipe Damage?

Stay alert for wet spots in dry weather, sinkholes or soft areas, slow drainage, unpleasant odours in your garden, overly lush patches of grass, trees heavily rooting in a specific area, and cracks in your foundation. If you notice two or more of these signs, schedule a camera inspection without delay.

• Wet patches in the garden during dry weather—this may indicate water leaking from a damaged pipe and saturating the surrounding soil.
• Sinkholes or soft spots—these can form when soil washes into a broken pipe, creating an underground void.
• Slow drainage or recurring blockages—a cracked, shifted, or belly-shaped pipe can trap debris and roots at the damaged locations.
• Unpleasant smells in your yard—a cracked sewer pipe may leak sewage into the surrounding soil.

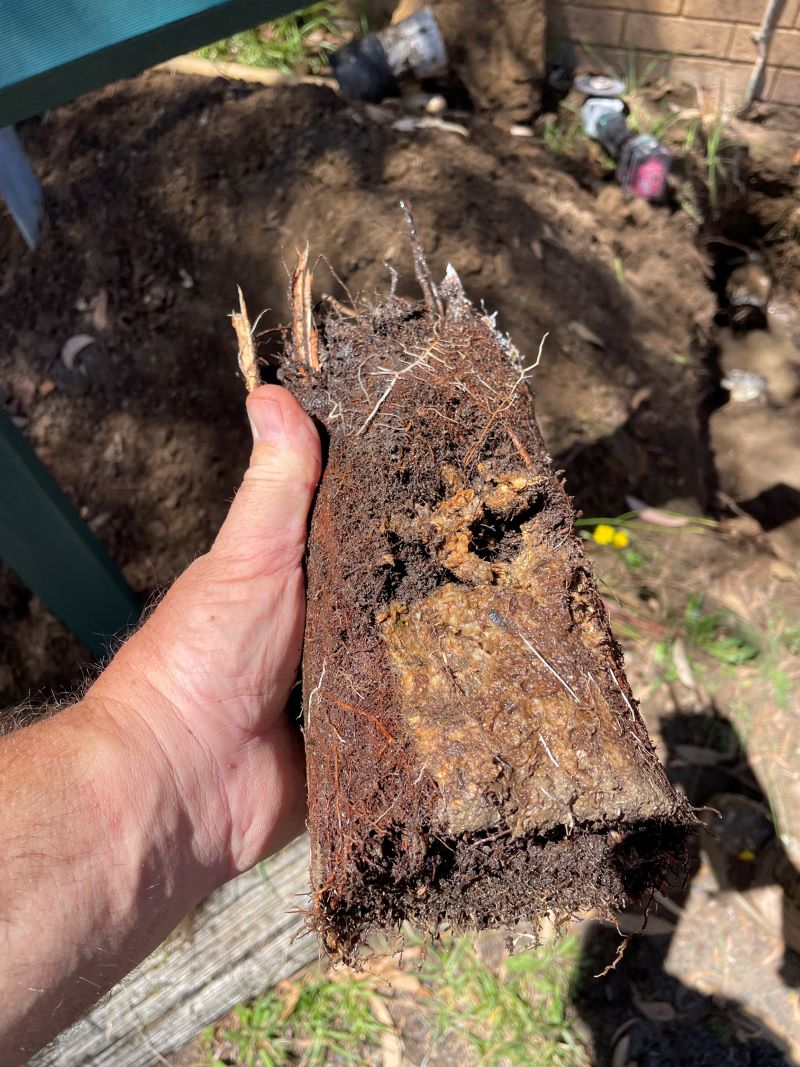

• Tree roots thriving in a specific area—trees often detect moisture and nutrients leaking from damaged pipes, resulting in concentrated root growth.
• Cracks in your foundation—movement in the clay soil affecting your pipes can also impact your home's structural integrity.

How Do We Detect Pipe Damage?

We use CCTV drain cameras to conduct visual inspections of the condition of sewer and stormwater pipes in real-time, identifying cracks, root intrusions, displaced joints, bellies, and collapses. For water mains, we employ acoustic and thermal leak detection methods, along with a comprehensive property assessment to anticipate potential future issues.

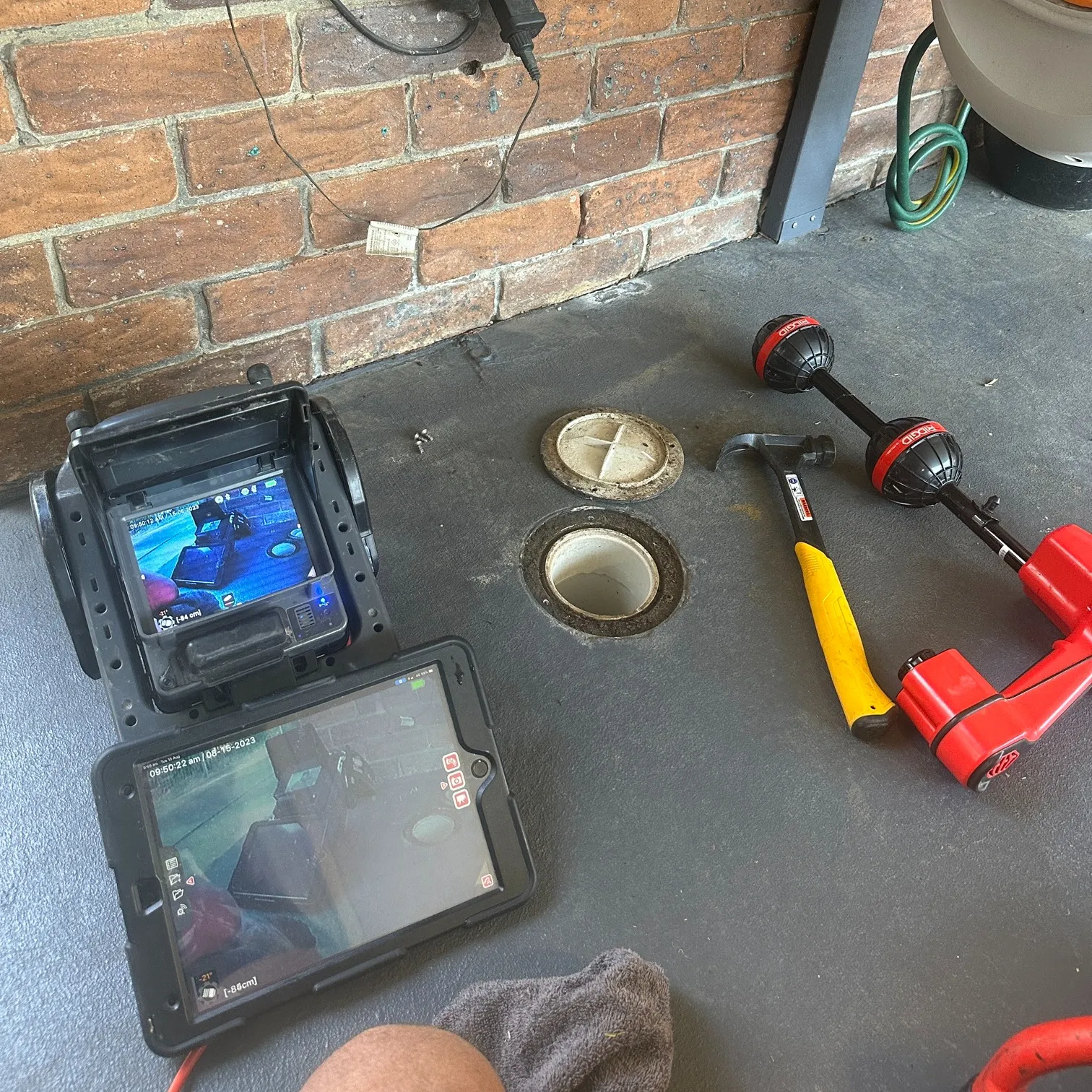

• CCTV drain camera inspection: A camera navigates through the pipe, providing a live visual of its condition. We can uncover cracks, breaks, root intrusions, displaced joints, sediment accumulation, and areas that have collapsed.
• Leak detection: To locate leaks in water supply pipes, we utilise advanced acoustic and thermal detection tools, enabling us to pinpoint issues without excavation.
• Ground assessment: We evaluate the entire landscape—soil conditions, tree placements, pipe materials, and property layout—to understand the causes of damage and predict where issues may arise next.

What Solutions Exist for Pipe Damage?

Hydro jetting is used to eliminate immediate blockages. For cracked or root-infested pipes, pipe relining presents the most effective solution—this method does not require excavation. Installing French and spoon drains can help alleviate future pressure from ground movement. Full excavation is only required in cases of total pipe failure.

• Hydro jetting: This technique removes roots, sediment, and debris from damaged pipes to restore proper flow, often serving as a preliminary step before conducting a camera inspection.
• Pipe relining: This method is ideal for cracked and root-invaded pipes in clay soil. A flexible resin liner is inserted into the damaged pipe and cured in place, eliminating the need for excavation. This solution is designed to last over 50 years.
• French drains: These systems redirect groundwater away from pipe corridors, reducing the pressure caused by the wet-dry cycle.
• Spoon drains: These surface drains capture and redirect rainwater before it saturates the soil surrounding underground pipes.
• Excavation and replacement: This option is reserved for completely collapsed pipes where relining is not feasible. We replace the damaged section with new PVC pipes bedded on sand (instead of clay) to mitigate future issues caused by ground movement.

Why Is Prompt Action Essential to Prevent Pipe Collapse?

Damage to underground pipes in clay soil worsens over time. The situation does not stabilise; it deteriorates. A minor crack today could escalate to complete pipe failure tomorrow. Roots that infiltrate gaps will continue to grow, ultimately blocking the pipe entirely.

The most cost-effective repairs are those carried out early. A camera inspection reveals the precise conditions underground, allowing you to plan necessary repairs before an urgent situation arises.

You can also verify our QBCC licence on the QBCC public register before scheduling a booking—we are a licensed plumbing contractor in Queensland.

Call 1300 793 962 or contact us to arrange your underground pipe inspection.

Frequently Asked Questions Regarding Clay Soil and Pipe Damage

How Can I Minimise the Risk of Clay Soil Damaging My Pipes?

While you can reduce the risk of damage, complete prevention is not possible. Regularly watering the area surrounding your home during dry spells can help mitigate the shrinkage cycle. Effective tree management can decrease root pressure on pipes. Installing proper drainage systems also assists in reducing soil saturation. Ongoing monitoring of pipes in reactive clay soil is crucial—camera inspections can help identify issues early.

What Are the Costs Associated with Repairing Pipes Damaged by Clay Soil?

Repair costs vary based on the extent of the damage and the chosen method. Hydro jetting to clear a blockage starts at around $350. Pipe relining for a damaged section typically begins at $4,000, while complete excavation and replacement for a collapsed pipe may exceed $8,000, depending on factors such as depth, length, and access. We provide accurate pricing after conducting a camera inspection.

Is Pipe Relining as Effective as Installing a New Pipe?

In most instances, yes. A relined pipe features a smooth, jointless interior that actually ensures better flow than the original pipe. The resin liner resists root intrusion and corrosion, boasting a lifespan of over 50 years. The primary benefit of relining over replacement is that it preserves your garden, driveway, and yard.

How Can I Determine If My Property Has Reactive Clay Soil?

Caboolture, Morayfield, Upper Caboolture, and much of the Moreton Bay area sit atop reactive clay. Signs to watch for include deep cracks in the soil during dry spells, sticky clay when wet, and uneven ground levels throughout the seasons. If your home was constructed with specific footings (deeper and reinforced), the builder likely recognised the reactive nature of the soil.

Who Should Refrain from Reading This Article?

• If you are situated outside the Moreton Bay region—different soil conditions necessitate different solutions. Our services specifically cover Caboolture, Burpengary, Morayfield, Bribie Island, Narangba, and surrounding suburbs.
• If you intend to undertake the plumbing work yourself—underground sanitary plumbing must be performed by a licensed plumber in Queensland.
• If you are seeking the cheapest quick fix without an inspection—we prioritise thorough assessments; we won’t commence excavation without first conducting a camera inspection.
