Solar Switchboard Upgrade for Ducted Air Con in Chelmer

Project Location: Chelmer
Project Scope: Switchboard enhancement
Result: Thorough single-phase switchboard upgrade that accommodates a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—no three-phase upgrade was necessary.

Choose Precision Electrical & Air for Your Reliable Switchboard Upgrade

This homeowner in Chelmer undertook a significant renovation project that encompassed the installation of a powerful 17.86kW single-phase solar photovoltaic (PV) system, a 30kWh modular battery storage solution, and comprehensive blackout protection throughout the entire residence. Furthermore, a new ducted air conditioning system was incorporated into the overall design. Prior to linking these state-of-the-art systems, it was essential to thoroughly evaluate and enhance the existing switchboard to ensure compliance with the latest safety standards and to effectively manage the increased electrical loads introduced by these installations.

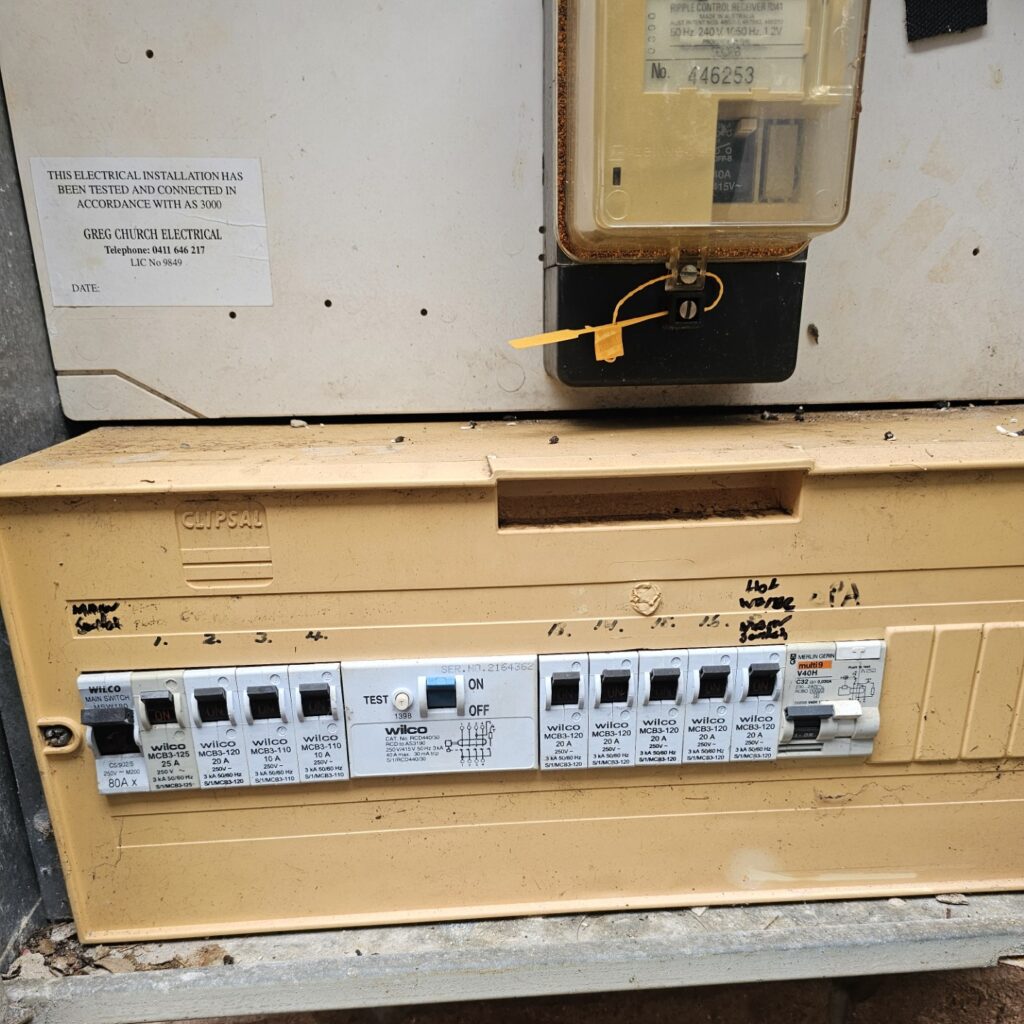

The original switchboard was outdated, featuring obsolete circuit breakers and a single Residual Current Device (RCD) providing protection for the entire property. It was inadequate for supporting solar energy integration and battery storage. Additionally, the circuit labelling was insufficient, rendering it non-compliant with the modern standards governing current energy generation systems. This lack of compliance raised significant concerns regarding the efficient operation of the newly upgraded systems.

Is a Three-Phase Upgrade Truly Necessary for Your Electrical System?

When assessing the specifications of a 17.86kW solar system coupled with a 30kWh battery, many homeowners mistakenly believe that a three-phase upgrade is indispensable. This common misconception can lead to significant financial consequences, with costs potentially ranging from £3,500 to £6,000, along with delays in obtaining approval from Energex for necessary network modifications.

In-Depth Technical Assessment to Evaluate Upgrade Necessity

Two critical factors influenced the decision regarding the necessity of a three-phase upgrade. Firstly, the supply cable for the residence was conveniently located near the street junction, allowing the voltage rise calculation for solar energy export to comfortably remain within Energex's single-phase limit of 2%. Secondly, since both the solar and battery systems are designed to alleviate demand on the grid rather than escalate it, there was no technical justification from the network's perspective for requiring a three-phase upgrade. Furthermore, the ducted air conditioning system was also determined to meet the essential parameters for efficient operation on a single-phase configuration.

As a result, the decision was made to retain the single-phase setup. The switchboard was upgraded accordingly to ensure it could safely and efficiently manage all new electrical loads without compromising safety or regulatory compliance.

Thorough Examination of Installed Components for Enhanced Safety and Compliance

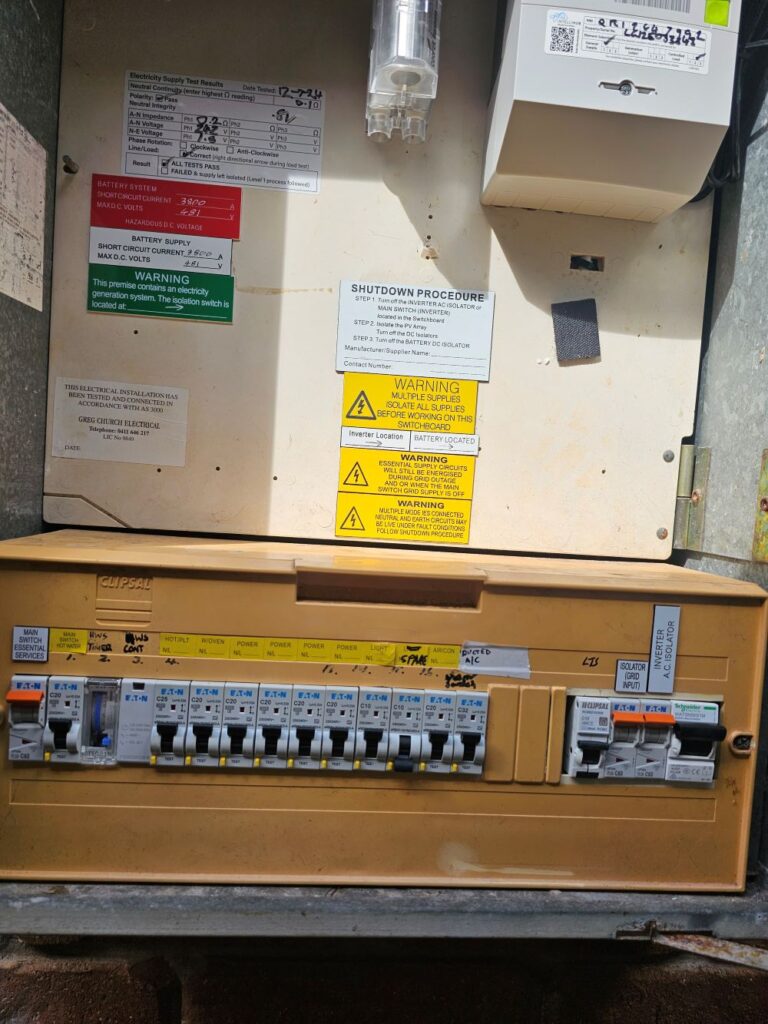

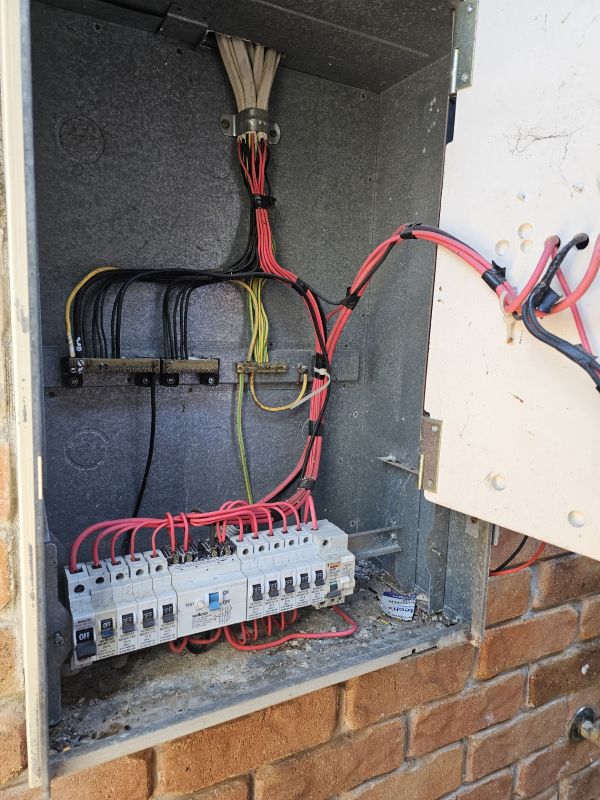

The existing switchboard underwent a complete dismantling and comprehensive reconfiguration. Every circuit breaker was replaced with new, appropriately rated units sourced from Eaton, with each breaker meticulously labelled for clarity and easy identification. The circuits were carefully segregated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning each received dedicated circuits to enhance safety and ensure compliance with current regulatory standards.

A timer was incorporated into the hot water service to ensure efficient operation during peak solar generation hours, significantly reducing reliance on the grid by optimising the solar system's output throughout the day. Additionally, a dedicated Hot Water Service (HWS) contactor circuit was installed to guarantee proper functionality and efficiency.

The upgraded switchboard was designed for seamless integration with both the solar inverter and the battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC, featuring a short-circuit current of 3800A, along with multiple supply warnings and a complete shutdown procedure. All electrical supply tests were successfully conducted and meticulously documented for the upgraded switchboard.

The completed switchboard now fully complies with the latest Australian standards, ensuring it is suitably configured for any future electrical service work required at the property.

Homeowner Reaps Benefits from Successful Switchboard Upgrade

The homeowner has successfully achieved a fully upgraded and compliant switchboard capable of safely supporting their solar system, 30kWh battery, and ducted air conditioning, all operating efficiently within a single-phase configuration. Most importantly, they avoided unnecessary expenses related to a three-phase upgrade that was not required for their specific circumstances.

Have You Received a Quote for a Three-Phase Upgrade and Are Unsure About Its Necessity?

While three-phase upgrades can be critical in certain scenarios, they are not universally necessary. If you have received a substantial quote for a switchboard upgrade and find yourself uncertain about its relevance to your situation, allow Precision Electrical & Air to conduct a thorough analysis. We will provide you with a clear assessment based on your cable distance, load requirements, and the actual criteria that Energex will utilise to approve your property.

We ensure no upselling occurs; you will receive an accurate evaluation tailored specifically to your home.
